Nordisk Morris Minor Lager A/S

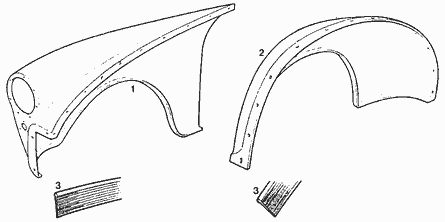

Wings

Wings

Ill. Part Number Description Remarks Info
1PAN124Wing - front RH 1098cc
 PAN125Wing - front LH
*DIV200Sealing strip front wing to flitch
*PAN200Buffer rubber front wing to valance
2PAN128Wing - rear RH1098cc
 PAN129Wing - rear LH
 PAN130Wing - rear RHTraveller
 PAN131Wing - rear LH
3TRM101Piping - wing - black
*PAN100Bolt for wing
*PAN801Bolt - wing fixingNot Traveller rear

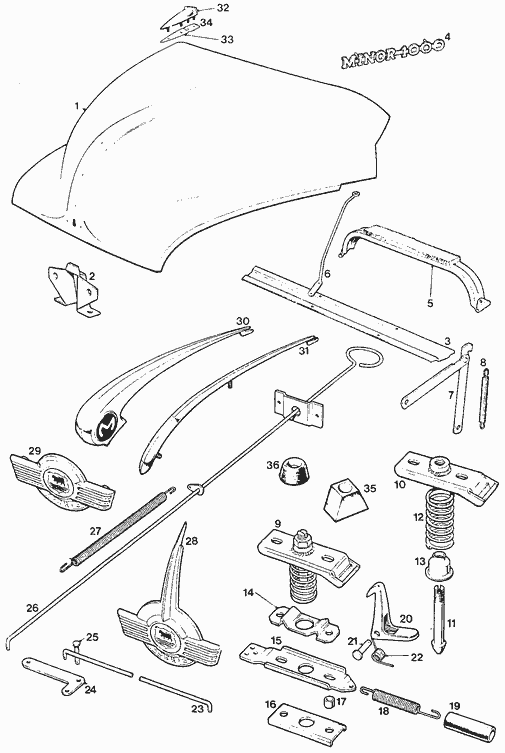

Bonnet

Bonnet

Ill. Part Number Description Remarks Info
1PAN139Bonnet
 PAN803Bonnet803cc
*AAA3256Beading bonnet RH
*AAA3257Beading bonnet LH
*PFS107clip for AAA3256
2BPF101Bracket - lock - upper
3BPF102Cross-member
4LOG1003Nameplate - "Minor-1000"
 LOG1004Nameplate - "Morris-Minor"803cc
5BPF103Strip - anti-drum
6BPF104Rod - stiffener - RH
 BPF105Rod - stiffener - LH
7BPF106Prop - bonnet
*104750Split pin for bonnet prop
8BPF107Spring - bonnet prop
9BPF108Pin - assembly - striker
10BPF109Bracket
11BPF110Pin
12BPF111Spring
13BPF112Cup
14BPF113Plate - slider guide
15BPF114Slider
16BPF115Support - slide - lock
17BPF116Tube - distance - slider
18BPF117Spring - slider - tension
19BPF118Sleeve - slider tension spring
20BPF119Catch - safety
21BPF120Pin - safety catch
22BPF121Spring - safety catch
23BPF122Rod - lever to slider
24BPF123Lever
25BPF124Pin - lever pivot
26BPF125Rod - lock control
27BPF126Spring - anti-rattle
28BPF127Motif
29BPF128Motif
30BPF129Flash
31BPF130Flash
32BPF131Hinge - RH
 BPF132Hinge - LH
33BPF133Washer - hinge to bonnet
34BPF134Washer - hinge to body
35BPF135Buffer - bonnet
36BPF136Buffer - dash

 Not Illustrated
 AAA2125Excluder water dash
 PFS103Clip for LOG1003
 12A4Link spring bonnet release

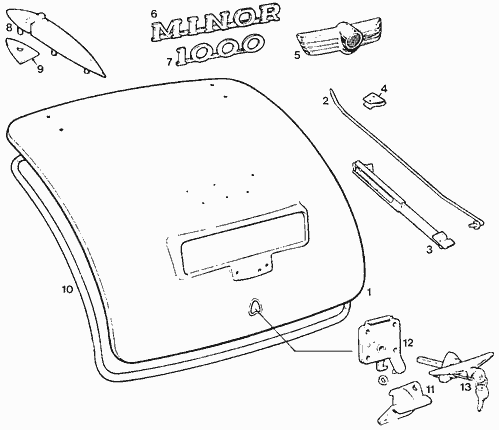

Boot Lid

Boot Lid

Ill. Part Number Description Remarks Info
1PAN145Lid - boot 803cc
 PAN146Lid - boot948cc
 PAN147Lid - boot1098cc
2BLF101Stay - rod
3BLF102Stay - telescopic
4BLF103Clip
5BLF104Flash
6LOG1001Motif "MINOR"
7LOG1002Motif "1000"
8BLF105Hinge - boot-lid - RH
 BLF106Hinge - boot-lid - LH
9BLF107Gasket - hinge to body
10BLF108Rubber - lid sealing
*BLF108ARubber lid sealing old type
*BLF108BGlue for rubber lid seal
11BLF109Plate - lock striker
12BLF110Lock
13BLF111Handle - boot locking

 Not Illustrated
 BLF103clip rubber

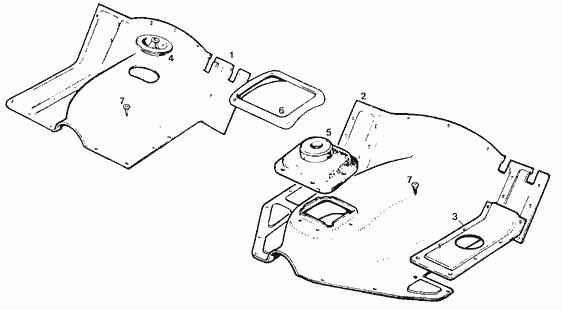

Gearbox Cover

Gearbox Cover

Ill. Part Number Description Remarks Info
1GCP101Cover - gearbox 803cc
2GCP102Cover - gearbox948cc and 1098cc
*ACA5300Rubber cover in gearbox cover
3GCP103Plate - master cylinder cover
4GCP104Gaiter - gear shift803cc
*GCP104AGaiter - gear shiftside valve
5GCP105Gaiter - gear shift948cc and 1098cc
6GCP106Plate - gaiter retaining
*AB610063Screw for GCP106
7GCP107Screw - cover to floor
*GCP108Washer for screw gear box cover
